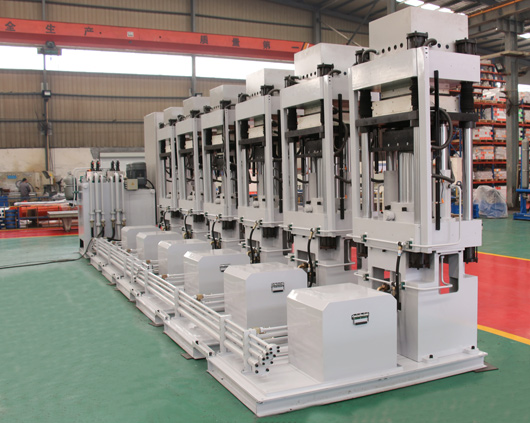

Y79 Hydraulic Press for Friction Materials
Items Type	Unit	Y79-100	Y79-200	Y79-315	Y79-500	Y79-630
Nominal Pressure	kN	1000	2000	3150	5000	6300
Knock-out Force	kN	160	360	450	760	650
Ejecting Force	kN	300	400	630	630	630
Ejection Stroke	kN	200	250	300	300	300
The Max. Working Pressure of Fluid	MPa	25	25	25	25	25
Opening Height	mm	900	1120	1250	1500	1500
Slider Stroke	mm	600	710	800	900	800
Size of Working Table	Left-Right	mm	720	930	1250	1400	1300
Front-Back	mm	630	900	1200	1400	900
Slider Speed	Idle Descend	mm/s	200	200	220	250	250
Working	mm/s	6～15	7～18	6～15	4～11	2～5
Exhausting	mm/s	3～5	3～5	3～5	3～5	3～5
Return	mm/s	200	200	200	200	220
Ejecting	mm/s	80	80	100	100	100
The above parameters are for reference only and can be customized according to customer requirements. Our company continuously researches and improves, and any changes in specifications will not be notified in advance.
