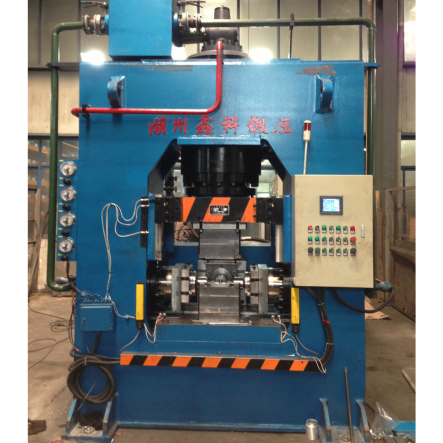

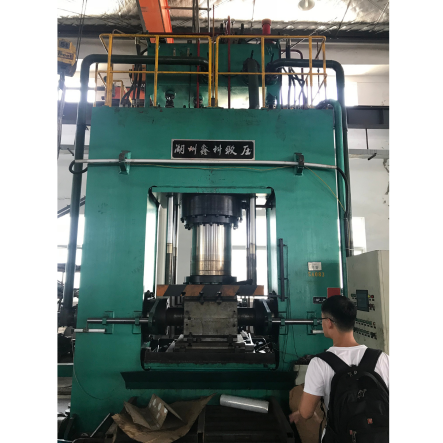

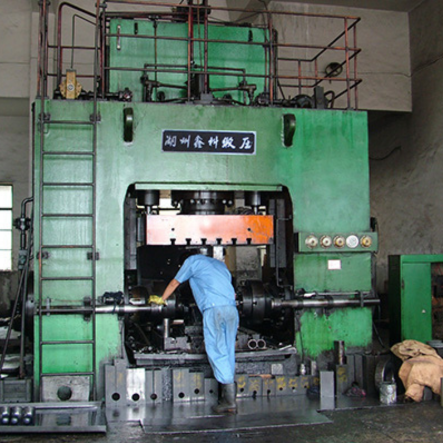

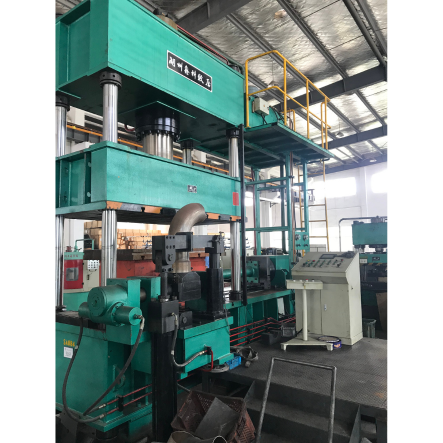

YST three-way hydraulic press

Details

YST Tee Extrusion Hydraulic Press
Item	Unit	YST-63	YST-100	YST-200	YST-315	YST-630	YST-630	YST-1000	YST-1500
Nominal Pressure	kN	630	1000	2000	3150	6300	6300	10000	15000
The Max.Distance between Working Table and Slider	mm	500	900	1120	1250	1800	1200	1500	1800
Slider Stroke	mm	230	600	500	600	1000	500	800	800
Side-Cylinder Stroke	mm	150	100	200	200	350	350	400	400
The Height Between Working Table and Ground	mm	800	860	550	650	500	600	600	1550
The Max.Distance between Piston End of Side Cylinder	mm	600	600	1000	1120	1800	1200	1400	2000
The Max.Distance Between Piston End of behind-side Cylinder and working Table Centre	mm	300	300	500	450	900	/	/	/
The Height between Working Table Face and Side Cylinder Centre	mm	100	120	220	320	350	320	400	500
Slider Working Speed	快下 Quick Descend	mm/s	150	160	200	220	250	250	300	300
Press-in	mm/s	4～6	10～23	12～24	2～10	6～13	2～8	1～6	1～6
Return	mm/s	100	130	150	200	220	220	250	250
Speed of both side Cylincer extrusion	mm/s	17	10	14～24	8～16	6	3～5	3～6	3～5
The above parameters are for reference only and can be customized according to customer requirements. The company keeps researching and improving, if there are any changes to the specifications, without prior notice.
