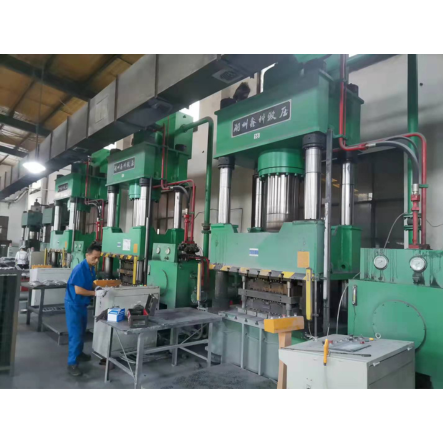

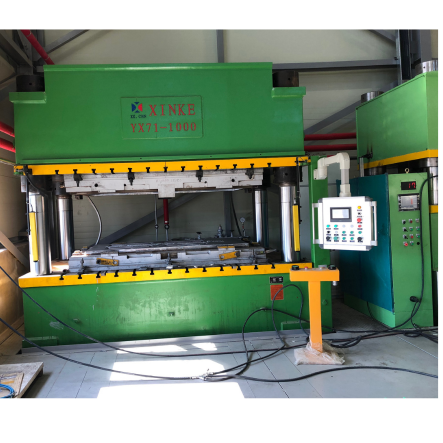

Y71 SMC Special Hydraulic Press
Ites Type	Unit	Y71-63	Y71-100	Y71-200	Y71-315	Y71-400	Y71-500	Y71-630	Y71-800	Y71-1000	Y71-1200	Y71-1600	Y71-2000	Y71-2500	Y71-3000
Nominal Pressure	kN	630	1000	2000	3150	4000	5000	6300	8000	10000	12500	16000	20000	25000	30000
Mould Opening Force	kN	125	250	4000	630	800	1000	1250	1250	1600	1600	2500	3150	4000	5000
Ejection Force	kN	125	250	400	630	630	1000	1000	1000	1000	1000	1600	2000	2000	2000
Size of Working Table	Left-Right	mm	570	720	930	1260	1300	1400	1600	2000	2000	2200	2500	3000	3200	3600
Front-Back	mm	500	630	900	1200	1300	1400	1800	1600	1600	1600	1600	2000	2500	2500
Opening Height	mm	800	900	1120	1250	1250	1500	1500	1600	2000	2000	2000	2500	2500	2500
Slider Stroke	t	500	630	710	800	800	900	1100	1200	1400	1400	1500	1500	1500	1500
Knockout Stroke	mm/s	200	200	200	300	300	300	300	300	300	300	300	300	300	300
Quick Descend Speed	mm	200	200	200	220	250	250	250	300	350	350	350	350	350	350
Pressing Speed	mm/s	2～10	10～20	2～7	2～7	2～7	2～7	1～5	1～5	1～5	1～5	1～5	1～5	1～5	1～5
Mould Opening Speed	mm/s	5～30	5～30	5～30	5～30	5～30	5～30	5～30	5～30	5～30	5～30	2～25	2～25	2～25	2～25
Slider Return	mm/s	200	200	200	250	250	260	280	280	300	300	300	300	300	300
Slow Knockout	mm/s	5～30	5～30	5～30	5～30	5～30	5～30	5～30	5～30	5～30	5～30	2～30	2～30	2～30	2～30
快速顶出 Quick Ejecting	mm/s	80	80	80	80	80	80	60	60	80	80	80	80	100	100
The above parameters are for reference only and can be customized according to customer requirements. Our company continuously researches and improves, and any changes in specifications will not be notified in advance.
