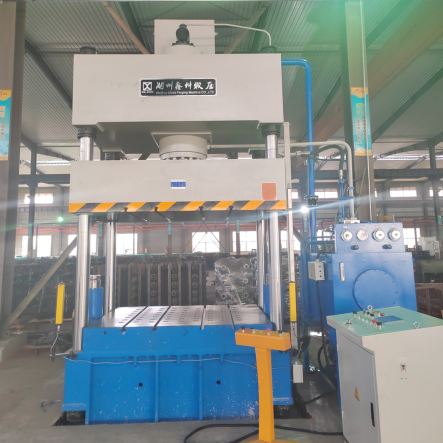

Y27-200 Four-Column Single-Action Thin Plate Stretching Hydraulic Press
| Items | Unite | Y32-100 | Y32-125 | Y32-200 | Y32-315 | Y32-400 | Y32-500 | Y32-630 | Y32-800 | Y32-1000 | Y32-1500 | Y32-2500 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Pressure | kN | 1000 | 1250 | 2000 | 3150 | 4000 | 5000 | 6300 | 8000 | 10000 | 15000 | 25000 |
| Ejector Force | kN | 630 | 630 | 800 | 800 | 800 | 1000 | 1000 | 1250 | 2000 | 2000 | 2500 |
| Knock-Out Force | kN | 160 | 180 | 360 | 450 | 345 | 570 | 640 | 720 | 1600 | 1600 | 2000 |
| The.Max.Working Pressure of Liquid | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| The.Max.Stroke of Slider | mm | 630 | 630 | 710 | 800 | 800 | 900 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Ejecting Stroke | mm | 200 | 200 | 250 | 300 | 300 | 300 | 300 | 350 | 400 | 400 | 450 |
| The.Max.Opening Height | mm | 900 | 900 | 1120 | 1250 | 1250 | 1500 | 1600 | 1600 | 1600 | 1800 | 1800 |
| Speed of Slider(Descend) | mm×mm | 250 | 220 | 200 | 250 | 250 | 250 | 280 | 300 | 300 | 250 | 250 |
| Speed of Slider(Working) | mm/s | 12-40 | 9-31 | 7-24 | 8-20 | 10-24 | 10-24 | 8-18 | 5-12 | 5-12 | 8-15 | 8-15 |
| Speed of Slider(Return) | mm/s | 200 | 200 | 200 | 220 | 220 | 250 | 250 | 260 | 260 | 200 | 200 |
| Speed of Slider(Working) | mm/s | 12-40 | 9-31 | 7-24 | 8-20 | 10-24 | 10-24 | 8-18 | 5-12 | 5-12 | 8-15 | 8-15 |
| The.Max.Opening Height | mm | 900 | 900 | 1120 | 1250 | 1250 | 1500 | 1600 | 1600 | 1600 | 1800 | 1800 |
| The.Max.Stroke of Slider | mm | 630 | 630 | 710 | 800 | 800 | 900 | 1000 | 1000 | 1000 | 1000 | 1000 |
| The.Max.Working Pressure of Liquid | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
