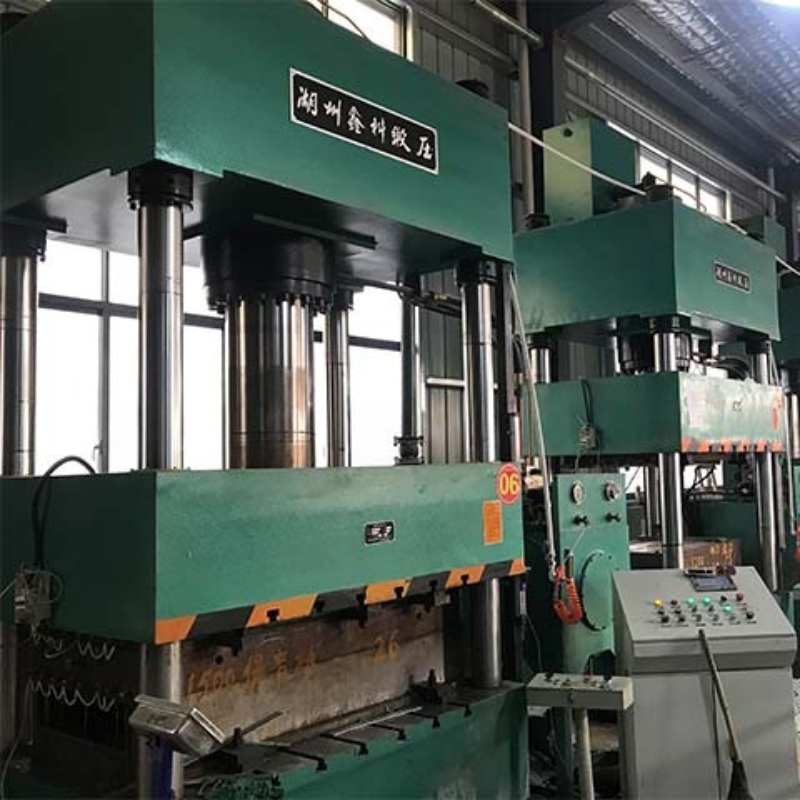

Y32 Four-column Hydraulic Press
Item type	Unit	Y32-100	Y32-125	Y32-200	Y32-315	Y32-400	Y32-500	Y32-630	Y32-800	Y32-1000	Y32-1500	Y32-2500
Nominal Pressure	kN	1000	1250	2000	3150	4000	5000	6300	8000	10000	15000	25000
Ejecting Force	kN	630	630	800	800	800	1000	1000	1250	2000	2000	2500
Knock-out Force	kN	160	180	360	450	345	570	850	720	1600	1600	2000
The Max. Pressure of Working Fluid	MPa	25	25	25	25	25	25	25	25	25	25	25
The Max. Stroke of Slider	mm	630	630	710	800	800	900	1000	1000	1000	1000	1000
The Max. Stroke of Ejector	mm	200	200	250	300	300	300	300	350	400	400	450
The Max. Opening Height	mm	900	900	1120	1250	1250	1500	1600	1600	1600	1800	1800
Speed of Slider	Descend	mm/s	250	220	200	250	250	250	280	300	300	250	250
working	mm/s	12～40	9～31	7～24	8～20	10～24	10～24	8～18	8～15	5～12	8～15	8～15
Return	mm/s	200	200	200	220	220	250	250	250	260	200	200
Speed of Ejector	Ejecting	mm/s	60	60	60	75	120	65	65	85	60	50	50
Return	mm/s	125	125	120	150	120	135	135	120	120	120	120
Active Area of Working Table(E×D)	Left-Right	mm	710	710	930	1260	1300	1400	1880	1880	2000	2500	3000
前后 Front-Back	mm	630	630	900	1200	1300	1400	1600	1600	1800	2000	2500

Items	Unite	Y32-100	Y32-125	Y32-200	Y32-315	Y32-400	Y32-500	Y32-630	Y32-800	Y32-1000	Y32-1500	Y32-2500
Nominal Pressure	kN	1000	1250	2000	3150	4000	5000	6300	8000	10000	15000	25000
Ejector Force	kN	630	630	800	800	800	1000	1000	1250	2000	2000	2500
Knock-Out Force	kN	160	180	360	450	345	570	640	720	1600	1600	2000
The.Max.Working Pressure of Liquid	MPa	25	25	25	25	25	25	25	25	25	25	25
The.Max.Stroke of Slider	mm	630	630	710	800	800	900	1000	1000	1000	1000	1000
Ejecting Stroke	mm	200	200	250	300	300	300	300	350	400	400	450
The.Max.Opening Height	mm	900	900	1120	1250	1250	1500	1600	1600	1600	1800	1800
Speed of Slider(Descend)	mm×mm	250	220	200	250	250	250	280	300	300	250	250
Speed of Slider(Working)	mm/s	12-40	9-31	7-24	8-20	10-24	10-24	8-18	5-12	5-12	8-15	8-15
Speed of Slider(Return)	mm/s	200	200	200	220	220	250	250	260	260	200	200
Speed of Slider(Working)	mm/s	12-40	9-31	7-24	8-20	10-24	10-24	8-18	5-12	5-12	8-15	8-15
The.Max.Opening Height	mm	900	900	1120	1250	1250	1500	1600	1600	1600	1800	1800
The.Max.Stroke of Slider	mm	630	630	710	800	800	900	1000	1000	1000	1000	1000
The.Max.Working Pressure of Liquid	MPa	25	25	25	25	25	25	25	25	25	25	25
