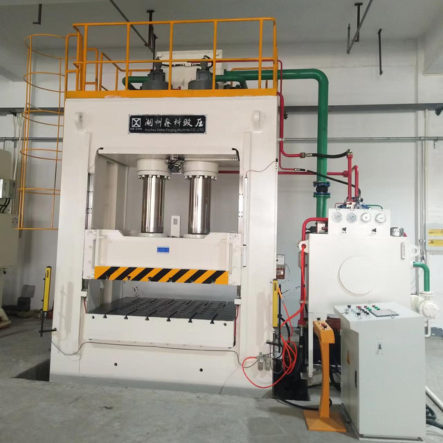

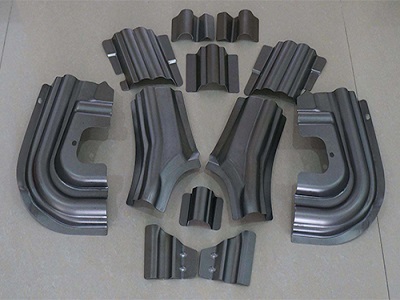

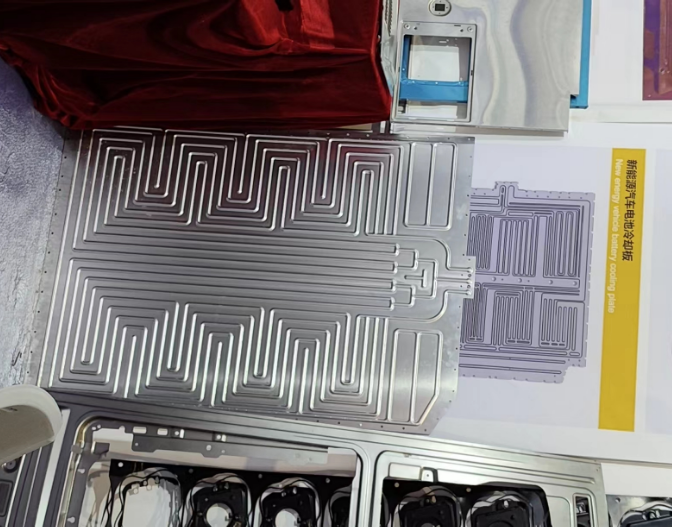

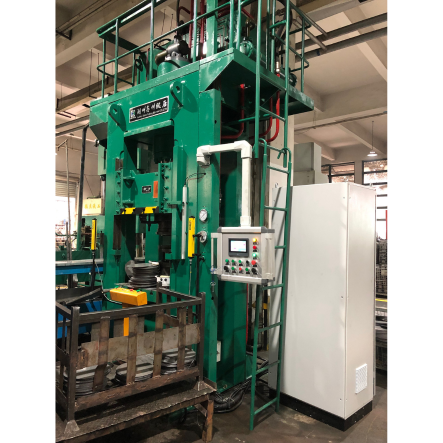

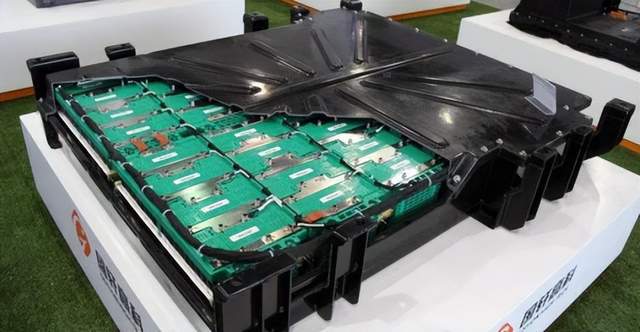

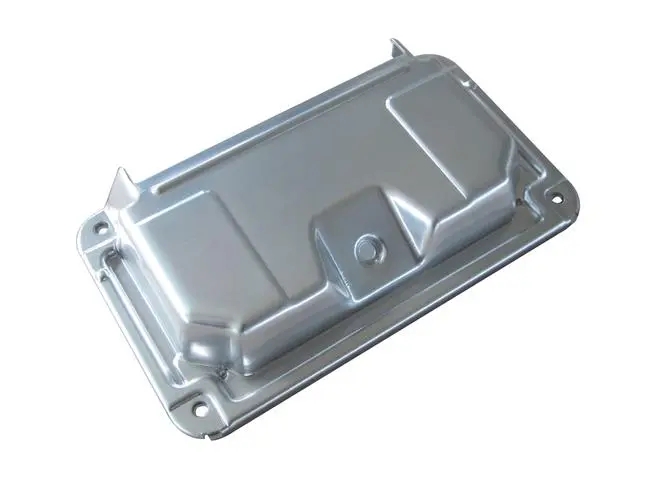

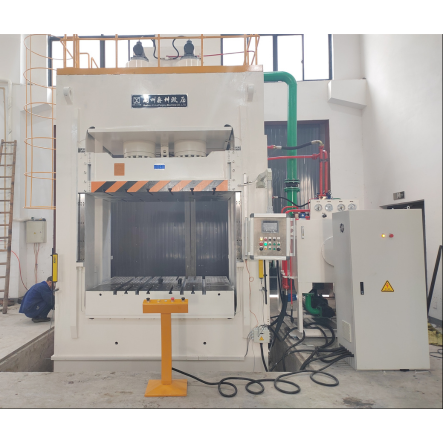

HY27 Frame Hydraulic Drawing Press

The whole frame or the split frame tie rod structure is adopted, and the computer has the characteristics of compact structure, good rigidity and high precision through computer finite element analysis and calculation;
8-fold guide way feature high direction precision and electric load resistance performance
Imported oil cylinder sealing components with high reliability and long life time

HY27Type----Frame Single Action Hydraulic Stamping Press
Items Type	Unit	HY27-315	HY27-500	HY27-630	HY27-800	HY27-1000	HY27-2000
Nominal Pressure	kN	3150	5000	6300	8000	10000	20000
Knock-Out Force	kN	300	810	600	830	1300	2100
Hydraulic Cushion Force	kN	1500	2000	3150	3000	4000	8000
Buffering Power	kN	/	800*2	1000*2	1500*2	3000*2	4000*2
The Max.Distance between Working Table and Slider	mm	1200	1500	1500	1600	2000	1800
Slider Stroke	mm	800	1000	1000	1000	1500	1300
Hydraulic Cushion Stroke	mm	300	300	300	400	400	400
The Height between Working Table and Ground	mm	600	600	600	600	600	645
Speed of Slider	Downstream	mm/s	300	300	350	300	400	350
Pressing	mm/s	12～26	12～25	12～28	10～25	10～25	18～38
Return	mm/s	280	280	300	300	300	300
Speed of Hydraulic Cushion	Rising	mm/s	55	55	50	60	80	80
Size of Working Table	Left-Right	mm	1500	2500	2500	3000	4000	4000
Front-Back	mm	1200	1800	2000	1800	2400	2500
Size of Hydraulic Cushion	Left-Right	mm	1000	1950	1800	2000	2850	3200
Front-Back	mm	800	1200	1200	1100	1850	1700
The above parameters are for reference only and can be customized according to customer requirements. Our company continuously researches and improves, and any changes in specifications will not be notified separately.

Items	Unite	HY27-315	HY27-500	HY27-630	HY27-800	HY27-1000	HY27-2000
Nominal Pressure	kN	3150	5000	6300	8000	10000	20000
Knock-Out Force	kN	300	810	600	830	1300	2100
Hydraulic Cushion Force	kN	1500	2000	3150	3000	4000	8000
Buffering Power	kN	/	800*2	1000*2	1500*2	3000*2	4000*2
The Max.Distance Between Working Table and Slider	mm	1200	1500	1500	1600	2000	1800
Slider Stroke	mm	800	1000	1000	1000	1500	1300
Hydraulic Cushion Strocke	mm	300	300	300	400	400	400
The Height Between Working Table and Ground	mm	600	600	600	600	600	645
Speed of Slider（Downstream）	mm/s	300	300	350	300	400	350
Speed of Slider（Pressing）	mm/s	12-26	12-25	12-28	12-25	12-25	18-38
Speed of Slider（Return）	mm/s	280	280	300	300	300	300
Speed of Hydraulic Cushion（Rising）	mm/s	55	55	50	60	80	80
Size of Working Table（Left-Right）	mm	1500	2500	2500	3000	4000	4000
Size of Working Table（Front-Back）	mm	1200	1800	2000	1800	2400	2500
Size of Hydraulic Cushion（Left-Right）	mm	1000	1950	1800	2000	2850	3200
Size of Hydraulic Cushion（Front-Back）	mm	800	1200	1200	1100	1850	1700
