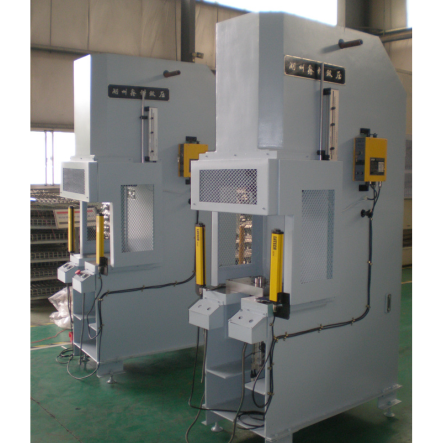

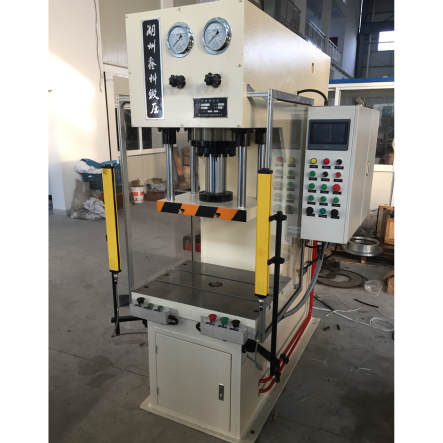

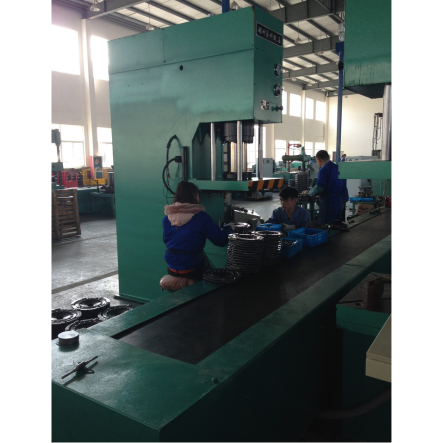

Y41 Single-Column Hydraulic Press
Item	Unit	Y41-2.5	Y41-4	Y41-6.3	Y41-10	Y41K-10	Y41-16	Y41-25	Y41-40	Y41-63	Y41-100	Y41-315	Y41-500
Nominal Pressure	kN	25	40	63	100	100	160	250	400	630	1000	3150	5000
Ejector Force	kN	/	/	/	/	/	/	60	100	125	200	/	/
The MAX. Working Pressure of Liquid	MPa	8	12.5	16	20	20	20	25	25	25	25	25	25
Ejecting Stroke	mm	/	/	/	/	/	/	140	150	160	160	/	/
Stroke	mm	125	200	200	250	400	320	350	400	400	450	450	1200
Roar Deep	mm	110	125	180	250	230	250	280	320	320	320	350	1200
Max. Opening	mm	210	360	360	450	700	520	560	600	650	710	710	1600
Size of Working Table	左右 Left-Right	mm	300	320	360	500	500	560	630	700	710	710	1000	2500
Front-Back	mm	200	240	320	420	420	480	520	580	600	630	650	2500
Size of Bed Opening	mm	φ80	φ80	φ80	u100	φ60	φ100	φ125	φ125	φ160	φ180	φ170	/
The Height of Working Table	mm	900	900	900	700	700	700	700	700	800	820	700	400
Speed of Slider	Down stream	mm/s	38	38	55	45	45	45	115	63	115	110	180	130
Working	mm/s	38	38	55	25	25	10	15	14	10	8	8～15	5～12
Return	mm/s	100	100	140	130	130	80	120	96	105	90	120	100
Ejector Piston Speed	Ejecting	mm/s	/	/	/	/	/	/	60	55	40	40	/	/
回程 Return	mm/s	/	/	/	/	/	/	180	220	160	160	/	/
The above parameters are for reference only and can be customized according to customer requirements. Our company continuously researches and improves, and any changes in specifications will not be notified separately.
